Slender Seal

Slenderseal – Designed for lifting surfaces with a longer narrow surface area – such as long Tiles – Pavers- Pipes -Cut to size bench tops

USD45.00

SKU: 840082400530 Category:
Free Shipping. Fullfilled by GRABO dealers near you

USD45.00

It seems like you're attempting to make a wholesale order. Please register to view our wholesale / dealer shop for better pricing, Join as a Wholesaler.

Description

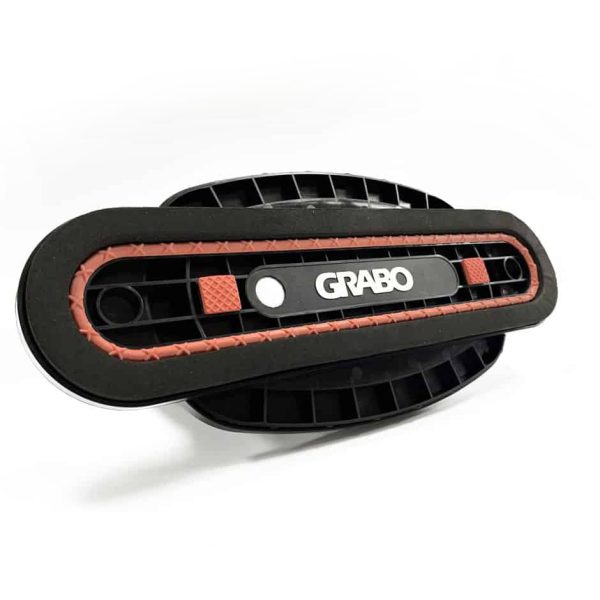

Slender Seal

Slender Seal is a new seal system that fits all GRABO models, including Nemo GRABO, GRABO Pro lifter-20, RTC tools GRABO, FXAH-120 Probst GRABO, Topspin Powertools GRABO and other co-branded units.

For lifting surfaces with a longer narrow surface area – such as long Tiles – Pavers- Pipes -Cut to size bench tops

Maximum Capacity lifting is 132 lb (60 kg)



GRABO Slender seal specifications:

Black foam seal
Material SBR rubber foam sponge
Color Black
L x W x H 16.2 x 6.9 x 1.24” (411 x 175 x 31.5 mm)
Dimension of seal 371 x 65 mm
Density 10.6 Lb/cft (170 kg/m^3)
Hardness, Shore C ~10 +/-2
Tearing pressure 1800 Psi (126 kg/cm^2)
Compression to 25% size at 8.5 Psi (6000 kg/m^2)
Lifetime (Compressions till performance reduction). ~900
Water Absorption, % <=5
Shrinkage at 160F (70C) for 24 hrs, % <=20
Recommended Storage Temperature Room temperature
Red seal
Material Silicon Foam
Color Red
L x W x H 16.2 x 6.9 x 1.24” (411 x 175 x 31.5 mm)
Density 40.5 Lb/cft (650 kg/m^3)
Hardness, Shore C 55 +/-5
Water Absorption, % <=4
Recommended Storage Temperature Room temperature
Full seal
Features Combined seal on plastic frame Slender profile

Lifting Capacity:

Perpendicular Hold Z Parallel Hold Y Parallel Hold X
Maximum value Safe value(50%) Maximum value Safe value(50%) Maximum value Safe value(50%)
Glass 225 Lbs (100kg) 110 Lbs (50kg) 110 Lbs (50kg) 55 Lbs (25kg) 220 Lbs (100kg) 110 Lbs (50kg)
Metal 145 Lbs (66kg) 72.5 Lbs (33kg) 110 Lbs (50kg) 55 Lbs (25kg) 220 Lbs (100kg) 110 Lbs (50kg)
Wood 132 Lbs (60kg) 66 Lbs (30kg) 66 Lbs (30kg) 33 Lbs (15kg) 176 Lbs (80kg) 88 Lbs (40kg)
Rough Concrete 105 Lbs (48kg) 52.5 Lbs (24kg) 110 Lbs (50kg) 33 Lbs (15 kg) 220 Lbs (100kg) 110 Lbs (50kg)
